CWT Compact S4 Installation & Maintenance Manual

Removal

1.Disconnect all cables from the coin unit. The number of cables depends on the terminal model and configuration.

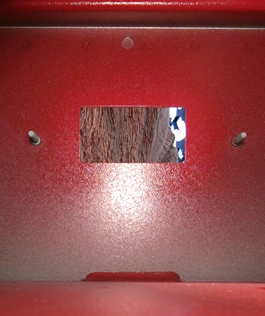

2.Unscrew the two screw nuts, one on each side of the Coin Return opening.

3.Remove the coin unit.

Install in reverse order. Keep the assembly pressed down while tightening the screws.
