Inside the cabinet

The items found inside the cabinet vary between the CWT Compact models and between different versions of each model. The figures show a CWT Compact model equipped for payment with coins, credit cards, and optional contactless cards.

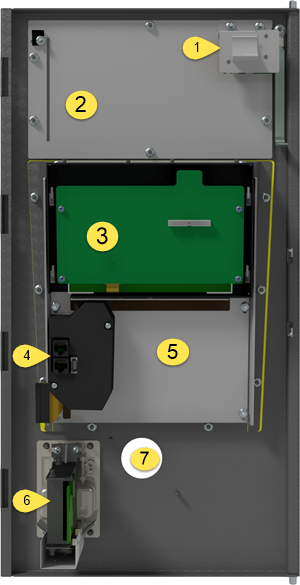

Backside of the door

Figure 20, CWTC S4 door.

1.Warning/error indicator

2.Information panel

3.Display unit

4.Keyboard unit interface

5.Keyboard

6.Card Reader

7.Coin inlet opening

Coin unit

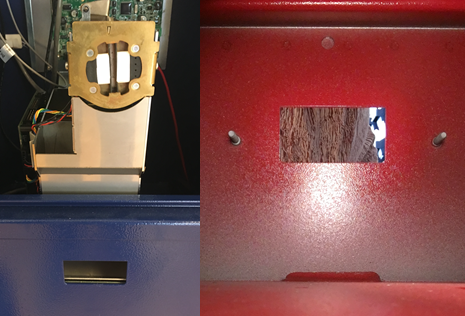

The Coin unit is mounted in the lower part of the cabinet and is fixed with 2 bolts to the front.

The Coin Return Lid is removed for this image.

Figure 21, Coin unit with mounting bolts and Coin Return opening

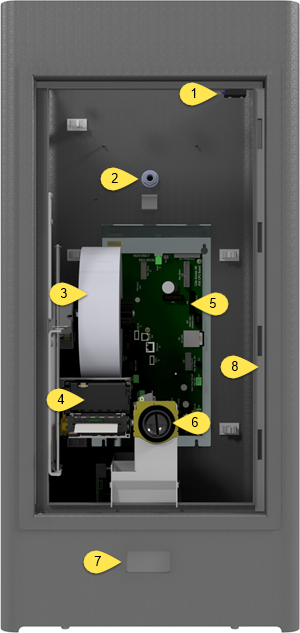

Inside of the cabinet

1.Door Open Sensor

2.Antenna

3.Paper roll

4.Printer

5.Mother board

6.Coin inlet

7.Coin return cup

8.Door lock mecanism
