Display module replacement

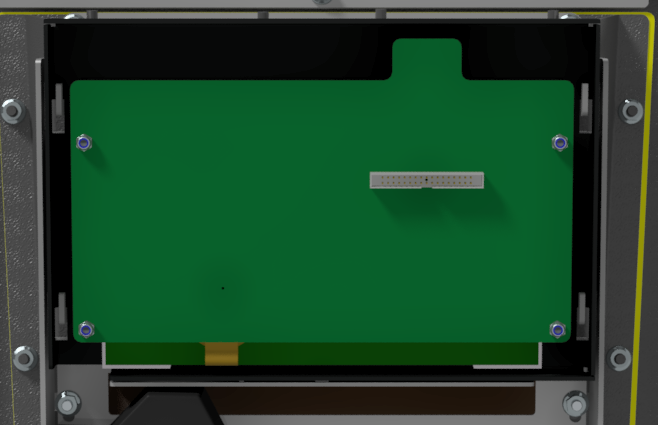

The display module is mounted on the door on four hooks, two on each side of the display. The mounting is the same for both the STN and the TFT display. The STN display comes with build in Status indicator.

Display Unit S4

•Disconnect the cables from the main board

•Lift of the old unit

•Replace with the new unit

•Reconnect the Cable

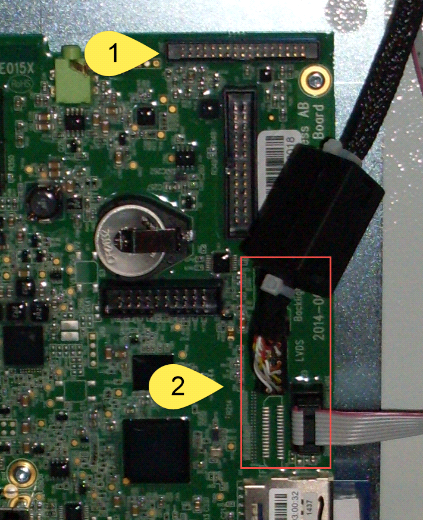

Figure 49, display connector locations. The TFT connectors are used

The display must be connected to the CPU board in different locations depending on the type of the display.

1.STN connector (J28)

2.TFT connectors (J41 Display, J23 Status Indicator)

Note:
This board is mounted on the top of the display unit
