Terminal measurements

 Scroll Prev Top Next More
Note:
The CWT Compact is available in two heights, the one presented in the figure above (1632 mm) and a shorter one (1532 mm).

CWTC S4 measurements

CWTC S4 measurements Short

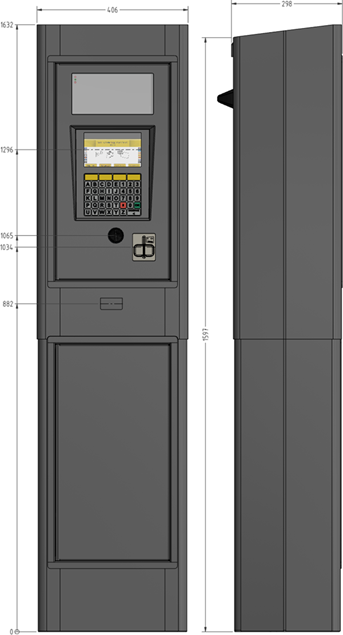

Figure 33, Terminal measurements Standard length

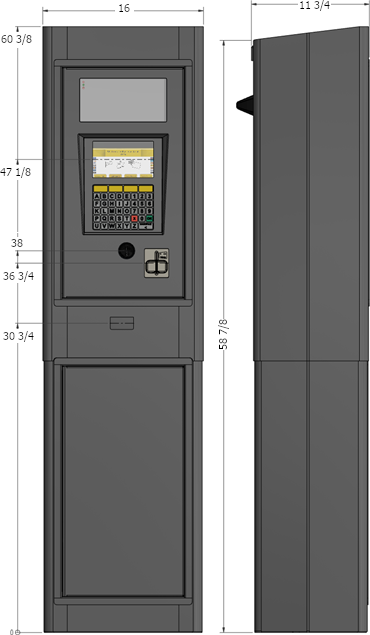

Figure 34, Terminal measurements with short pedestal. Measurements in inches
