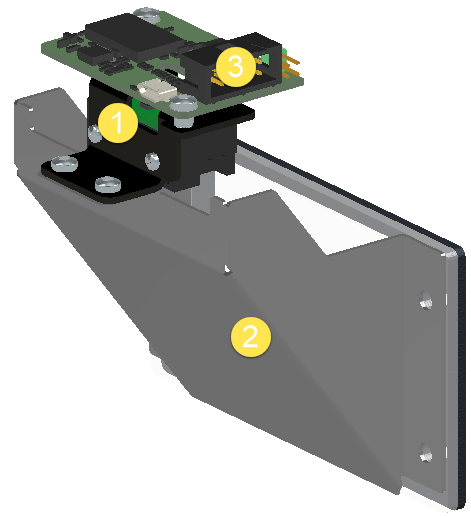

Figure 15, bar code assambly
The bar code scanner is mounted on top of a frame containing a mirror and window
1.Bar code scanner including the connection board
2.Mirror frame
3.Cable connector
Location of the Bar Code Scanner
The Bar Code Reader is located next to the Contact-less reader.
Replacing the scanner
| Note: The mirror and frame are not included in the replacement. |
•Open the terminal
•Power down the terminal
•Disconnect the cable from the bar code scanner (3)
•Unscrew the bar code scanner (1) from the mirror frame (2)
•Mount the new scanner in reverse order
•The cable is on the main board connected to connector J35
