The CPU board consists of a main printed circuit board assembly. It contains a 32-bit 800 MHz processor with a 256 MB non-volatile flash memory used to store the operating system (Windows EC7) and a 512 MB RAM. The real-time clock is backed up by a battery positioned on the CPU board.

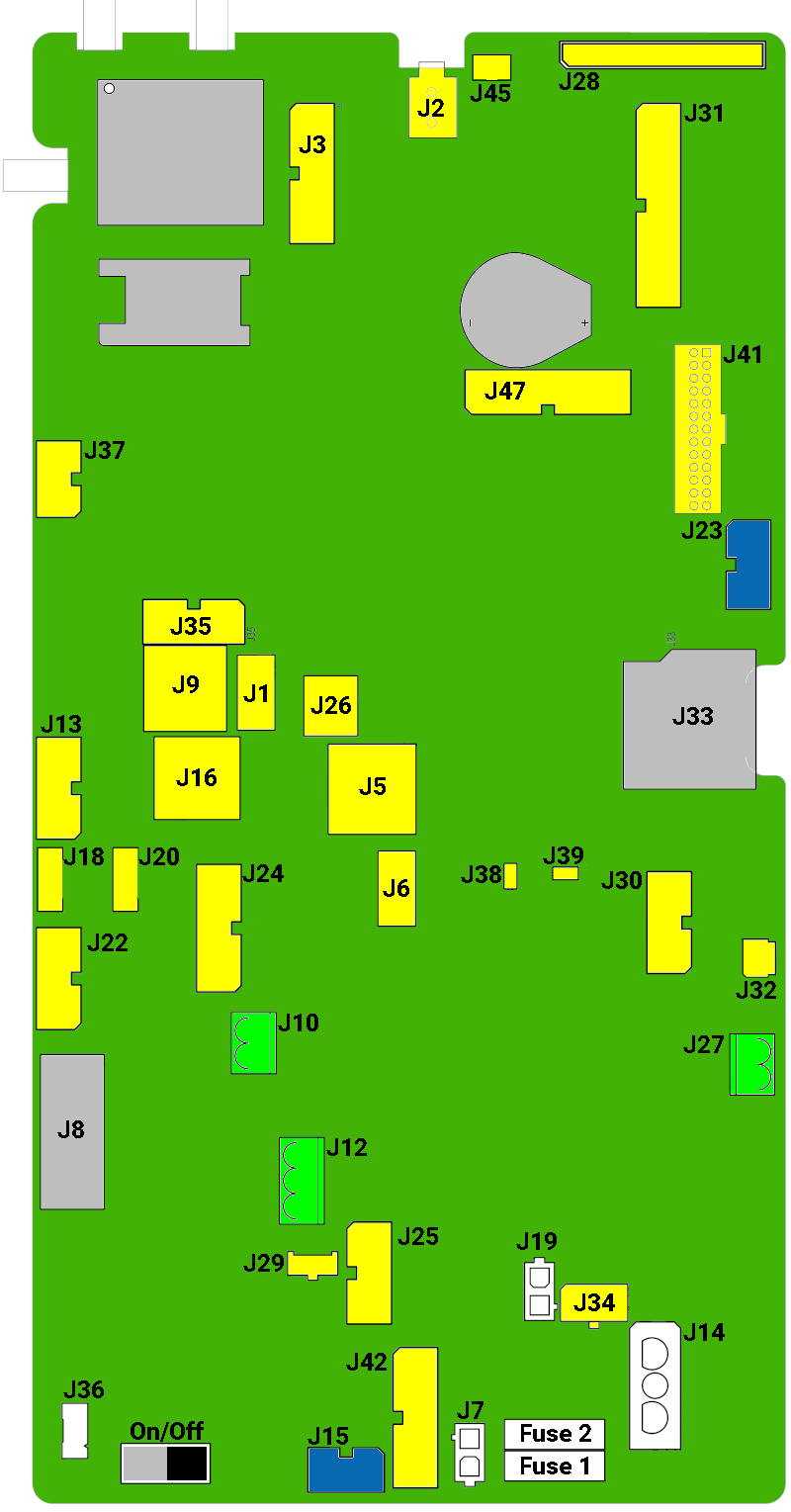

The figure below shows the positions of connectors etc. The figure is followed by a list of all connectors and their use.
Figure 12, CPU board version 0501-E0153 Rev B
Connector |
Com port |
Type |
Function |
|---|---|---|---|
F1 |
|
|
4A Fuse (ATO) |
F2 |
|
|
Not in use |
J1 |
|
|
USB 2.0 Host Type A |
J2 |
|
|
Speaker |
J3 |
|
|
Expansion board |
J4 |
|
|
Not mounted |
J5 |
|
|
Ethernet |
J6 |
|
|
USB 2 host type A |
J7 |
|
Battery voltage |
Printer power, Gebe printer (i.e non S5) |
J8 |
Com 7 |
External SPI UART |
Serial 2 |
J9 |
Com 2 |
|
CWT Cap Bus |
J10 |
|
|
nput (e.g. Seismic alarm) |
J11 |
|
|
Not mounted |
J12 |
|
|
Relay Output |
J13 |
Com 9 |
Internal SPI UART |
Touch for DMC-EXC7237 (i.e non S5) - Serial 4 |
J14 |
|
|
Battery power in |
J15 |
|
|
Touch controller AM-EXC3132 (i.e S5) |
J16 |
|
|
CWT Cap Bus |
J17 |
|
|
Not mounted |
J18 |
|
|
Coin Box (1/2) Lower Door (3/4) |
J19 |
|
Battery voltage |
12V_1 - power output, primarily for extpu card readers |
J20 |
|
|
Upper Door switch |
J21 |
|
|
Not mounted |
J22 |
Com 8 |
External SPI UART |
Printer Gebe/Flowbird - Serial 3 |
J23 |
|
|
Status LEDS and Ambient light sensor |
J24 |
Com 1 |
External SPI UART |
SCA, Smart Coin Acceptor - Serial 5 |
J25 |
|
|
AVR JTAG (for loading of AVR software) |
J26 |
|
|
USB Device (type B) |
J27 |
|
|
Solar Panel Input – Min 10V, Max 29 V, Max 2.5 A |
J28 |
|
|
STN Display |
J29 |
|
Battery voltage |
12V_2 - power output |
J30 |
|
|
Debug port |
J31 |
Com 4 (** |
Internal iMX53 UART |
Expansion board |
J32 |
|
|
Wake up button |
J33 |
|
|
SD Card |
J34 |
|
|
External Light |
J35 |
Com 3 (* |
Internal iMX53 UART |
External pay unit or bill reader - Serial 1 |
J36 |
|
|
Coin detection sensor |
J37 |
Com 3 (* |
Internal iMX53 UART |
External pay unit or bill reader - MDB |
J38 |
|
|
Boot Mode |
J39 |
|
|
Fuse Voltage |
J40 |
|
|
Not mounted |
J41 |
|
|
Colour display with LDVS and Backlight |
J42 |
|
Battery voltage |
Printer power, Flowbird printer |
J44 |
|
|
Not mounted |
J45 |
|
|
Microphone |
J47 |
|
|
JTAG imx53 |
J48 |
|
|
Not mounted |
J49 |
|
|
Not mounted |
(* J35 cannot be used if the MDB port (J37) is used and vice versa
(** Only if an expansion board with a serial connector is installed
