Important: •The Access S5 shall be powered from an approved external PSU that is limited to an output power of 50 W. |
The Flowbird Access S5 Terminal needs to be supplied with a 12V external power supply connected to J14 in the lower right corner of the CPU board next to the fuses.

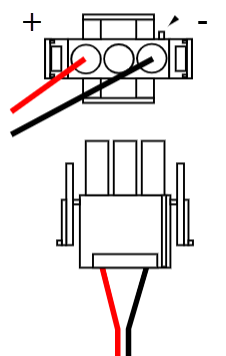

Figure 9, power connector
The power supply uses a Universal MATE-N-LOK 3 pin connector
Note the little pin on the negative (black) wire
