These parameters set the behaviour of the Wallet.
To be able to print a combined checkin ticket and/or receipt the attribute ticketMode in the PAYMENTSERVICE element must be set to "TicketAfterAccept".
The names are case sensitive.
Attributes

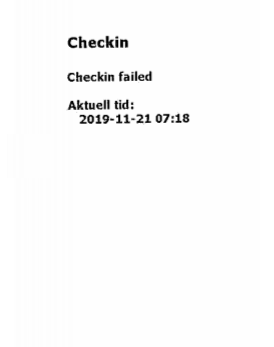

CheckInAbortReceiptLayout
| Description: | Defines the layout of receipt ticket printed when check in fails. |
| Default: | '@H@f32@fb@cr@lf@x5@v649 "WPP_CHECKIN"@cr@lf@f24@fb@cr@lf@x5@v649 "WPP_CHECKIN_FAILED"@cr@lf@f24@fb@cr@lf@x5@v649 "WPP_CURRENT_TIME"@cr@lf@x5@v648@cr@lf' |

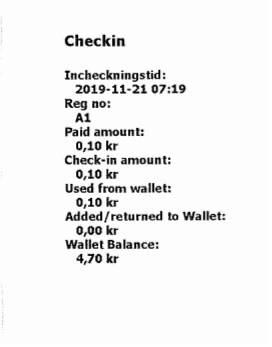

CheckInReceiptLayout
| Description: | Defines the layout of receipt ticket printed at check in. |
Note: this layout is ignored if PrintCheckInReceiptOnSuccess is set to “Combined”.
| Default: | '@H@f32@fb@cr@lf@x5@v649 "WPP_CHECKIN"@cr@lf@f24@fb@cr@lf@x5@v649 "WPP_CHECKIN_TIME"@cr@lf@x5 @v640@cr@lf@x5@v649 "WPP_LICENSEPLATE"@cr@lf@x5 @v641@cr@lf@x5@v649 "WPP_PURCHASE_AMOUNT"@cr@lf@x5@v647@cr@lf@x5@v649 "WPP_CHECKIN_AMOUNT"@cr@lf@x5@v639@cr@lf@x5@v649 "WPP_AMOUNT_PAID_WITH_WPP"@cr@lf@x5@v644@cr@lf@x5@v649"WPP_AMOUNT_ADDED_TO_WPP"@cr@lf@x5@v645@cr@lf@x5@v649"WPP_BALANCE"@cr@lf@x5@v646@cr@lf@cr@lf' |

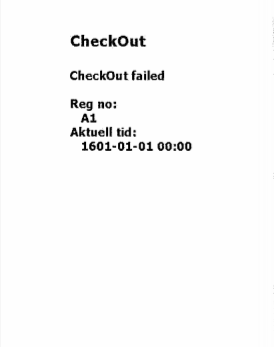

CheckOutAbortReceiptLayout
| Description: | Defines the layout of receipt ticket printed when check out failed. |
| Default: | '@H@f32@fb@cr@lf@x5@v649 "WPP_CHECKOUT"@cr@lf@f24@fb@cr@lf@x5@v649 "WPP_CHECKOUT_FAILED"@cr@lf@f24@fb@cr@lf@x5@v649 "WPP_LICENSEPLATE"@cr@lf@x5 @v641@cr@lf@x5@v649 "WPP_CURRENT_TIME"@cr@lf@x5@v648@cr@lf' |

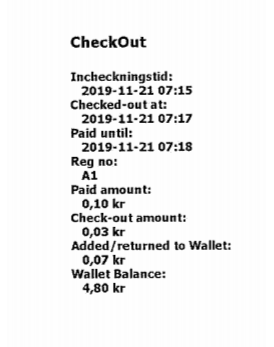

CheckOutReceiptLayout
| Description: | efines the layout of receipt ticket printed at check out. |
| Default: | '@H@f32@fb@cr@lf@x5@v649 "WPP_CHECKOUT"@cr@lf@f24@fb@cr@lf@x5@v649 "WPP_CHECKIN_TIME"@cr@lf@x5 @v640@cr@lf@x5@v649 "WPP_CHECKOUT_TIME"@cr@lf@x5@v642@cr@lf@x5@v649 "WPP_CHECKOUT_END_PAY_INTERVAL"@cr@lf@x5@v638@cr@lf@x5@v649"WPP_LICENSEPLATE"@cr@lf@x5@v641@cr@lf@x5@v649 "WPP_PURCHASE_AMOUNT"@cr@lf@x5@v647@cr@lf@x5@v649 "WPP_CHECKOUT_AMOUNT"@cr@lf@x5@v643@cr@lf@x5@v649 "WPP_AMOUNT_ADDED_TO_WPP"@cr@lf@x5 @v645@cr@lf@x5@v649 "WPP_BALANCE"@cr@lf@x5 @v646@cr@lf@cr@lf' |
CommunicationTimeout
| Range: | 0 to 1000 |
| Default: | 45 |
| Description: | Timeout for connection to WebOffice and Wallet service. |
FallbackPaymentService
| Range: | -1 to 65535 |
| Default: | -1 |
| Description: | When the communication is down, and the Wallet account is not reachable, the Wallet dll can fallback to another PaymentService (PATSelection). If the fallback PaymentService is -1 the fallback will result in Reject. |
Gateway
| Range: | N/A |
| Default: | gateway.mdc.dmz.caleaccess.com |
| Description: | Address to the WebOffice gateway. |
PhoneNumberEntry
| Range: | required, Required, optional, Optional, none, None |
| Default: | optional |
| Description: | required: user must enter phone number optional: user can decide to enter phone number or not none: phone number is not used |
PrintCheckInReceiptOnFailure
| Range: | Yes Print a receipt for check-in or Top-Up, No No receipt will be printed, Ask Ask if a receipt shall be printed |
| Default: | Ask |
PrintCheckInReceiptOnSuccess
| Range: | Yes Print a receipt for check-in or Top-Up. No No receipt will be printed. Ask Ask if a receipt shall be printed, Combined Print a combined ticket (e.g. print wallet balance on the parking ticket). Requires the attribute ticketMode in the PAYMENTSERVICE element must be set to "TicketAfterAccept". Otherwise the receipt part will be blank. |
| Default: | Ask |
PrintCheckOutReceiptOnFailure
| Range: | Yes Print a receipt for check-in or Top-Up. No No receipt will be printed. Ask Ask if a receipt shall be printed |
| Default: | Ask |
PrintCheckOutReceiptOnSuccess
| Range: | Yes Print a receipt. No No receipt will be printed. Ask Ask if a receipt shall be printed. |
| Default: | Ask |
TopUpAbortReceiptLayout
| Description: | Defines the layout of receipt ticket printed when top up fails. |
| Default: | '@H@f32@fb@cr@lf@x5@v649 "WPP_TOPUP"@cr@lf@f24@fb@cr@lf@x5@v649 "WPP_TOPUP_FAILED"@cr@lf@f24@fb@cr@lf@x5@v649 "WPP_CURRENT_TIME"@cr@lf@x5@v648@cr@lf' |
TopUpReceiptLayout
| Description: | Defines the layout of receipt ticket printed at check in. |
Note: this layout is ignored if PrintCheckInReceiptOnSuccess is set to “Combined”.
| Default: | '@H@f32@fb@cr@lf@x5@v649 "WPP_TOPUP"@cr@lf@f24@fb@cr@lf@x5@v649 "WPP_CHECKIN_TIME"@cr@lf@x5 @v640@cr@lf@x5@v649 "WPP_LICENSEPLATE"@cr@lf@x5 @v641@cr@lf@x5@v649 "WPP_PURCHASE_AMOUNT"@cr@lf@x5@v647@cr@lf@x5@v649 "WPP_TOPUP_AMOUNT"@cr@lf@x5@v639@cr@lf@x5@v649 |
Default receipt examples:
|
|
|
|
|
|
