CWT Compact S4 Touch Installation & Maintenance Manual

Both doors have a door-open sensor. All attempts to open the terminal are logged in the CWT Compact and the information is transferred to WebOffice.

The door-open sensor consists of a permanent magnet mounted on the door and a magnetic field sensitive sensor mounted inside the door frame.

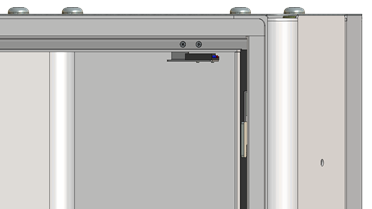

Figure 29, Door-open sensor in the cabinet.

Figure 30, Door-open sensor in the pedestal.
