CWT Compact S4 Touch Installation & Maintenance Manual

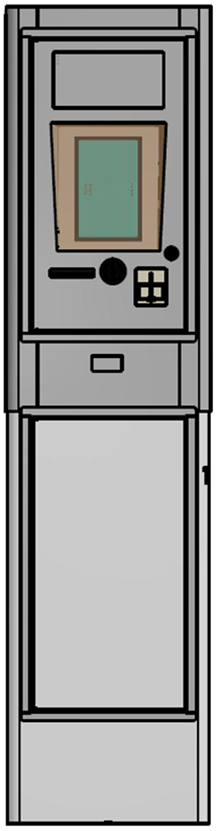

Figure 2, CWTC S4 Touch

The CWTC S4 Touch system is equipped with a touch enabled 800x480 pixels colour display with adjustable luminescence. The CWTC S4 Touch features a green wake-up button.

All buttons required for the user interaction are part of the user interface design presented in the display. Even a full alpha-numeric keyboard can, for instance, be presented in the display.

The information panel above the display is fully customizable. The surface can also contain instructions or advertising elements.

In this chapter:

•Means of payment

•Touch enabled Colour display

•Data communication

•Print system

•Mechanical design

•Power supply

•The service menu

•Administrative tools

•CWT Compact interconnections

•CPU board version 0501-E0150 Rev H

•Terminal measurements
