CWT Compact S4 Touch Installation & Maintenance Manual

Navigation: Product description

Terminal measurements

 Scroll Prev Top Next More
Note:
The CWT Compact is available in two heights, the one presented in the figure above (1626, 5 mm) and a shorter one (58 3/4 inch).
CWTC S4T measurements
CWTC S4T Short US

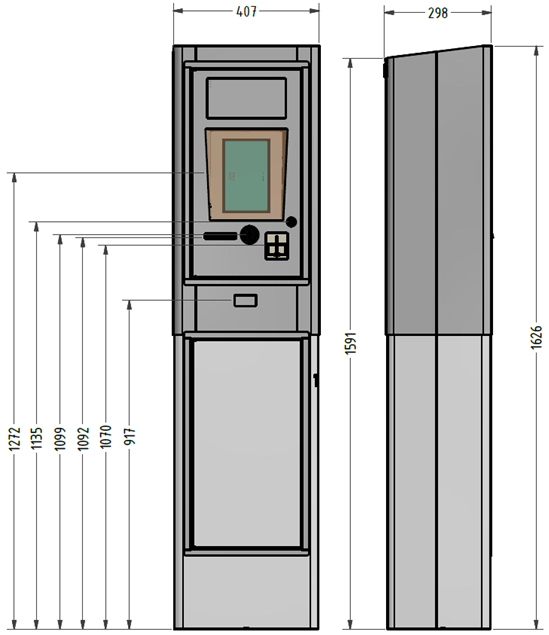

Figure 33, Terminal measurements Standard length

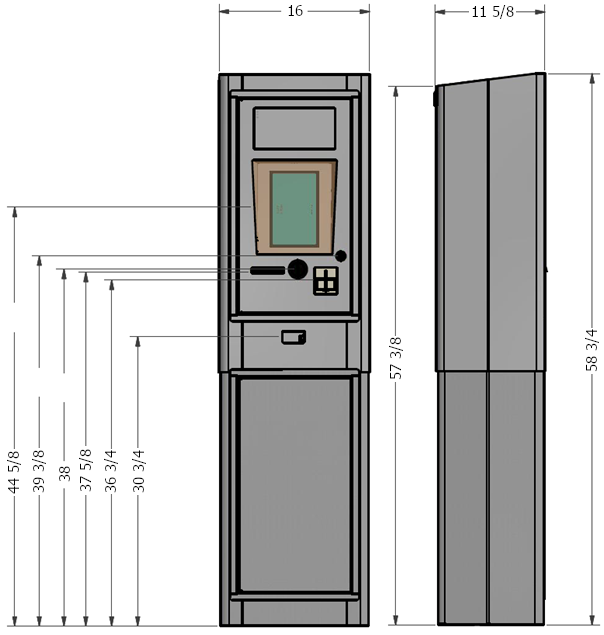

Figure 34, Terminal measurements with short pedestal. Measurements in inches
