CWT Compact S4 Touch Installation & Maintenance Manual
| Note: The printer shelf comes in two variates. The older version (version 1) has a long plate mounted in the cabinet with a lock mechanism at the end of the plate. The newer version (Version 2) has lock directly after the hinge. Both types are displayed in the manual. |
| Reference: This section describes the printer exterior and the function principles. See the CWT Software Configuration Handbook section GEBE printer for information regarding all other aspects of printer control and printer settings. |
 |
|

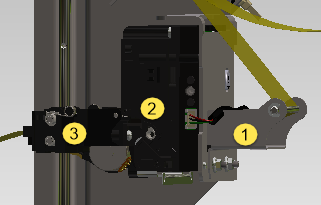

1.Paper guide 2.Printer 3.Ticket presenter |
|

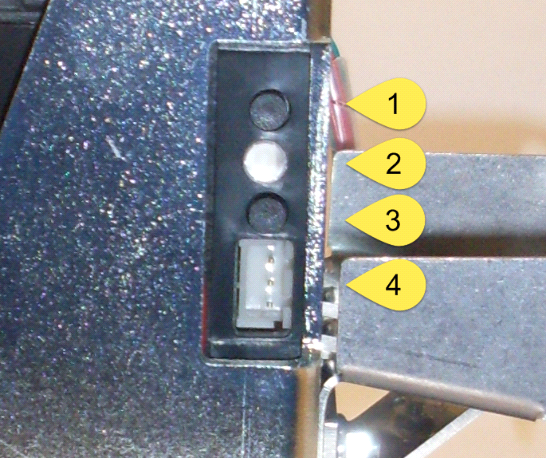

Figure 14, Status indicator and buttons.
1.Test printout button
2.Status indicator. The Status Indicator will blink when an error occurs
3.Feed button
4.Connector for a paper out sensor

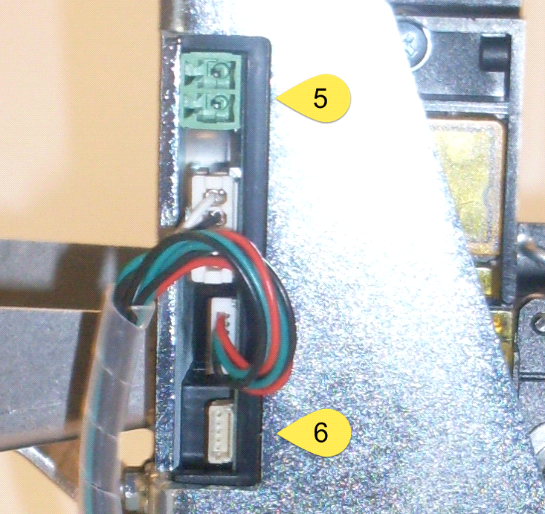

Figure 15, Power and Data connectors.
5.Power connector 12 V
6.RS 232 Data connector
