CWT Compact S4 Touch Installation & Maintenance Manual
The items found inside the cabinet vary between the CWT Compact models and between different versions of each model. The figures show a CWT Compact model equipped for payment with coins, credit cards, and optional contact-less cards.
Door inside

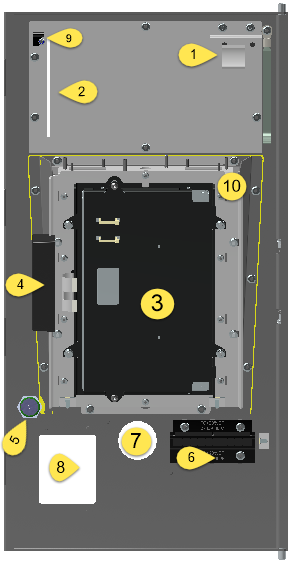

 Figure 20, CTWC S4 Touch door interior. |
1.Warning/Error Indicator 2.Insert slot for Notification area. 3.Display Unit 4.Touch screen unit 5.Wake-up button 6.Ticket outlet 7.Coin unit insert slot 8.Card reader slot 9.Permanent magnet 10.Inwards tilted display frame including display mounting frame. The yellow line indicates the border of the tilted frame |
Coin unit

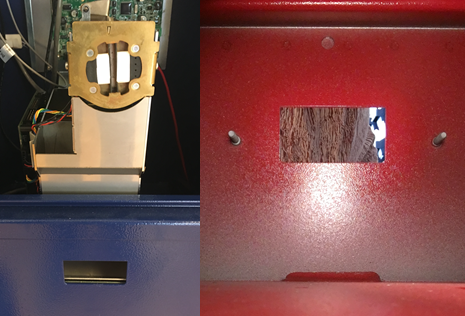

The Coin unit is mounted in the lower part of the cabinet and is fixed with 2 bolts to the front.
The Coin Return Lid is removed for this image.
Figure 21, Coin unit with mounting bolts and Coin Return opening

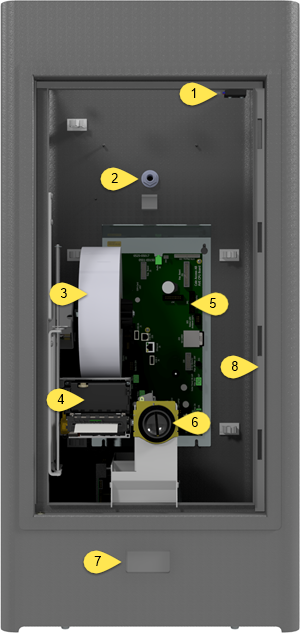

Inside of the cabinet
 |
1.Door Open Sensor 2.Antenna 3.Paper roll 4.Printer 5.Mother board 6.Coin inlet 7.Coin return cup 8.Door lock mechanism |
