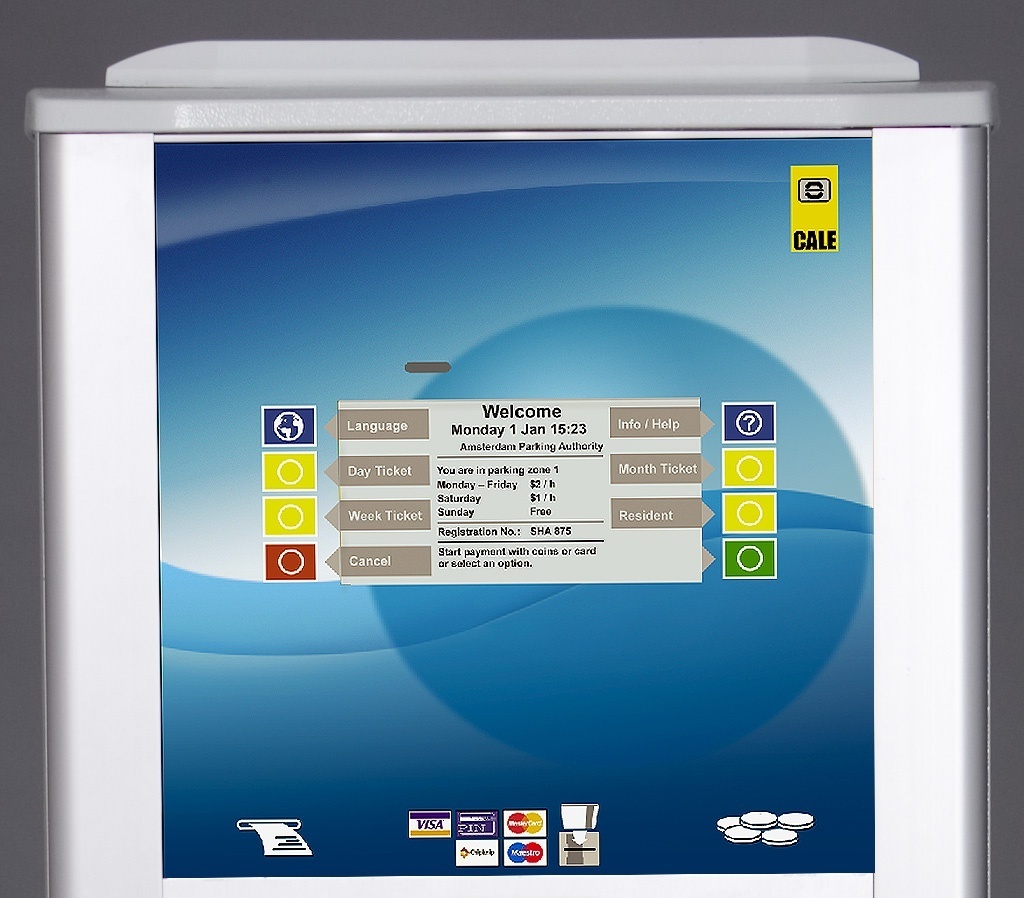

Figure 11. CWT 2110 has a monochrome 260 x 128 pixels STN/LCD display and up to 8 soft buttons.
The STN/LCD display is surrounded by up to eight capacitive soft buttons.
To be able to program the buttons they have been given the names shown below:
LeftOne |
|
|
|
RightOne |
|---|---|---|---|---|
LeftTwo |
RightTwo |
|||
LeftThree |
RightThree |
|||
LeftFour |
RightFour |
Figure 12. Soft Button naming in the CWT 2110 and 2115
Soft keys and other elements presented in the display are defined in one or several display panels (see Introduction to user interface concept ) assembled in a form.
Besides the soft buttons positioned at both the sides of the display, the CWT 2115 screen also has an alpha-numeric keyboard with capacitive keys.

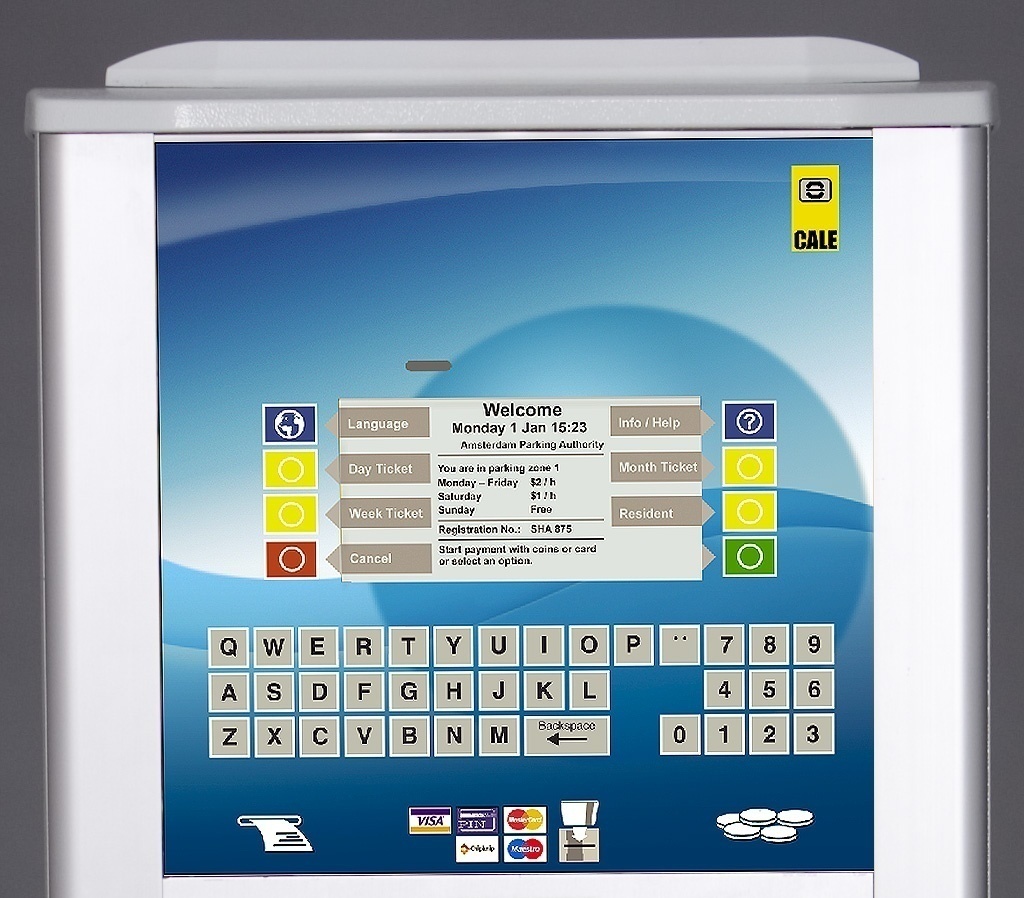

Figure 13. CWT 2115 has a monochrome 260 x 128 pixels STN/LCD display, up to 8 soft buttons and an alpha-numeric keyboard.
