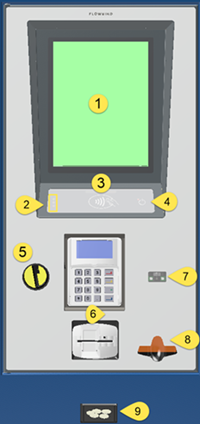

Figure 4, Terminal interface
The display assembly is built up with the following components:
1.Touch enabled Display
2.Warning/Error Indicator
3.Contactless Card Reader. See Card readers
4.Wake Up Button
5.Coin insertion slot. See Coin system
6.Card reader with pin-pad.
7.Bar code Scanner
8.Ticket outlet. See Print system
9.Coin return cup. See Coin system
Warning/error indicator
The warning/error indicator can light with either red or yellow color.
RED = Error
YELLOW = Warning
The slot for the warning indicator also support the ambient light sensor
Wake Up button
When in sleep mode the display is dark. This button wakes the terminal and will display the default panel.
