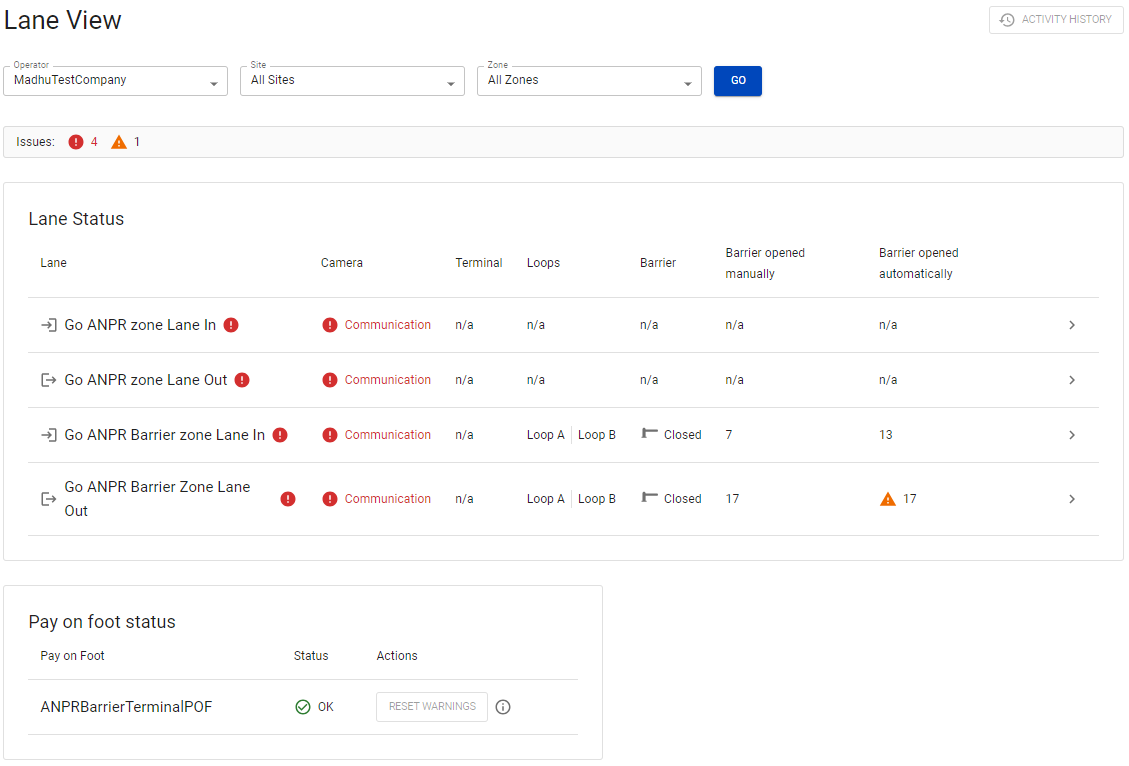

The Lane View page in the Go portal allows you to monitor and manage lane-specific operations. This page includes filtering options and displays critical lane details, including the status of various components.
Additionally, the Lane View page features a Pay on Foot (POF) Status table. This table provides the latest status of POF terminals for each selected zone, including warnings, errors, and when the status is OK. These terminal events are fetched from WebOffice and displayed by zone.
| Note: Based on the Operator’s Zone Type, the availability of components differs. For example, if the Zone Type is Barrier Only, then only terminal and barrier information can be shown in the Lane View. |
| Important: Lane Configuration for Gate and Relays is done in the Barriers tab in the Zones tab in Sites and in the Barrier configuration section in Cameras. Both are in the administration menu. |
Filters:
The lane view Page includes filters for operators, sites and zones.
By default, the operator drop-down displays the current user’s operator.
Based on the selected operator, you can further filter the view by site or zone, with the drop-downs displaying all sites and zones related to the selected operator.
Lane Status Table:
The Lane View page displays lane statuses in a table with the following columns:
Column |
Description |
|---|---|
Lane |
Displays the corresponding lane name. |
Camera |
Shows the status of the camera assigned to this lane |
Terminal |
Indicates the status of the terminal connected to this lane. |
Loops |
displays the status of the loops. |
Barrier |
Shows whether the barrier is open or closed |
Barrier Opened Manually |
Displays the count of times the barrier related to this lane has been triggered to open manually. |
Barrier Opened Automatically |
Displays the count of times the barrier has been triggered to open automatically. |
Arrow (>) |
Clicking this arrow opens the Lane View Details dialogue. |
