Flowbird GO - ANPR 1.36 User Guide

Navigation: Administration > Sites > Zones tab > Add Zone (Settings tab)

Pay On Foot Terminal Configuration

Scroll Prev Top Next More

This tab allows you to assign CWT terminals, fetched from WebOffice based on the operator's parking ID, to the current zone being edited.

To configure Pay On Foot (POF) terminals, you can add one or more terminals by selecting them from the drop-down menu and clicking the plus (+) sign. The selected terminals will appear in a list below the drop-down, and you can remove any terminal from the list by clicking the "x" button.

Make sure to click the Save button to apply the POF terminal configuration to the zone.

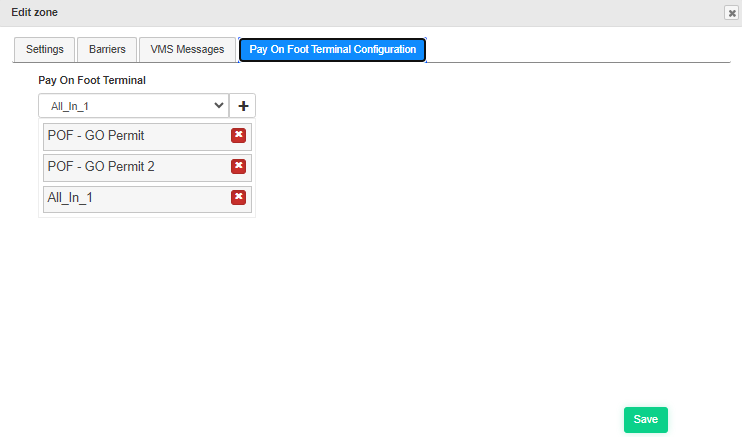

Zone tab PayOnFoot

Pay On Foot Terminals Status

On the Lane View Page, we have added a Pay on Foot Status table that shows the latest status of the POF terminals for each selected zone. This includes warnings, errors, and even when the status is OK. These terminal events are fetched from WebOffice and displayed by zone.
